Clinar
Strip shape in small formatClinar facade panels are part of our unique small-format repertoire. With their slim, elegant striped shape, they create a lively facade, exciting and independent. Varying formats can also be mixed together individually. The rich selection of colors with different surface characters allows a wide variety of coverage patterns and color moods. Assembly and detailing are based on proven installation techniques. This ensures reliable protection and value retention.Four standard formats for different coverage patterns including: 900 × 300 × 4 mm / 1200 × 150 × 6 mm / 1200 × 200 × 6 mm / 1200 × 240 × 6 mm.
Rectangular strip double covering


Single lapped
Module dimensions
1200 × 240 × 6 mm


Single lapped
Module dimensions
1200 × 200 × 6 mm


Single lapped
Module dimensions
1200 × 150 × 6 mm


Rectangular strips double lapped
Module dimensions
900 × 300 × 4 mm

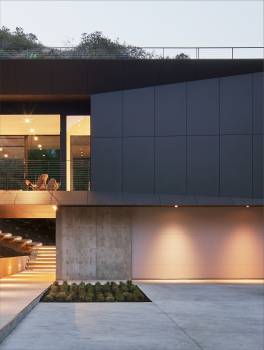

References
ReferencesAdvantages

Architectural inspiring
The natural raw material components and the typical fiber cement structure give the building envelope an unmistakable, independent material character. The variety of shapes and colors open up an almost limitless scope for facade design.

Natural building material
Our fiber cement consists largely of natural, mineral raw materials as well as recycled process fibers. Regional sourcing is very important to us. This effectively conserves important raw material resources.

Sound-insulation
The very good sound insulation values of fiber cement facade cladding ensures a quiet and pleasant living environment.

Maintenance-free
Swisspearl panels are durable, extremely resistant and maintenance-free in their use. Their highly resistant surface finish does not require repainting even after years.

Fireproof
Swisspearl sheets are mineral products and therefore non-combustible. They have excellent fire behavior values. A property that provides the necessary safety, especially for dense construction.

Long-lasting and economical
The incomparably durable Swisspearl panels optimally protect the facade structure from any weather or external influences, thus guaranteeing a long-lasting, safe and maintenance-free building envelope for decades.
