Corrugated Sheets

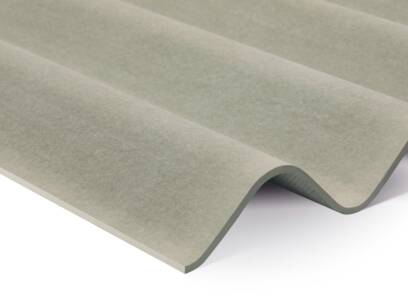

Swisspearl W 177-5.5

Thanks to its format, this board stands for cost-effective roofing of large roof areas on buildings used for agricultural or industrial purposes, such as stables, riding stables, warehouses and production facilities.

Sound-reducing, rust-free, non-combustible and able to absorb condensation, Swisspearl W177-5.5 are the preferred choice for roofing single-skin structures. Their moisture-regulating properties also make them a popular roofing material for garages and carports.

With a cover width of 873 mm and 177 x 51 mm corrugated troughs, this corrugated sheet has a large surface area and thus a high water absorption capacity. It can be installed on both large and small roof areas with a minimum pitch of 7°.

Due to the polypropylene safety strip incorporated in each corrugation, Swisspearl corrugated sheets have a confirmed fall-through safety. Swisspearl fibre cement corrugated sheets are sound-absorbing; a significant advantage in animal husbandry. However, Swisspearl corrugated sheets also dampen sound from the inside to the outside, which has a positive effect on noise pollution in the surrounding area. In addition, they are non-combustible and resistant to ammonia and other chemical influences.

Swisspearl corrugated sheets are available in natural grey (uncoated) or coated in 5 popular roof colours. A precisely coordinated range of moulded parts, such as components for flashings and ridges, ensures an overall coherent appearance and usefully complements the portfolio. Swisspearl's 3-step coating process ensures a high-quality and permanently beautiful panel surface.

Variants*ThicknessWidthLength
FS / CO / HO / PCO6.5 mm918 mmmultiple


* Variants: FS Full Sheet / CO Cut Corners / HO Holes

Technical data
Material
Fibre cement
Coating and surface
Water-based acrylic paint
Colours
Natural Grey unpainted + 6 painted
Fire protection class
A2 - s1, d0 (painted) A1 (for Natural Grey unpainted)
Mechanical strength
Class C1X
Avg SQM weight
12.5 kg
Fixing
Steel or timber with self-drilling screws
Strong characteristics
Fireproof
Non Combustible
Swisspearl facade panels are non-combustible. They have excellent fire behavior values and provide the necessary safety, especially for dense construction.
Light Weight
Low weight
Fibre cement is an extremely strong building material when dried. Therefore, it is extremely stable and light despite its low strength.
Sustainable and Efficient
Long-lasting
The durable Swisspearl panels optimally protect the facade structure, thus guaranteeing a long-lasting and safe building envelope for decades.
Long-lasting Reliability
Weather resistant
Fibre cement is an extremely weather-resistant material. Severe weather conditions cannot harm the façade.
